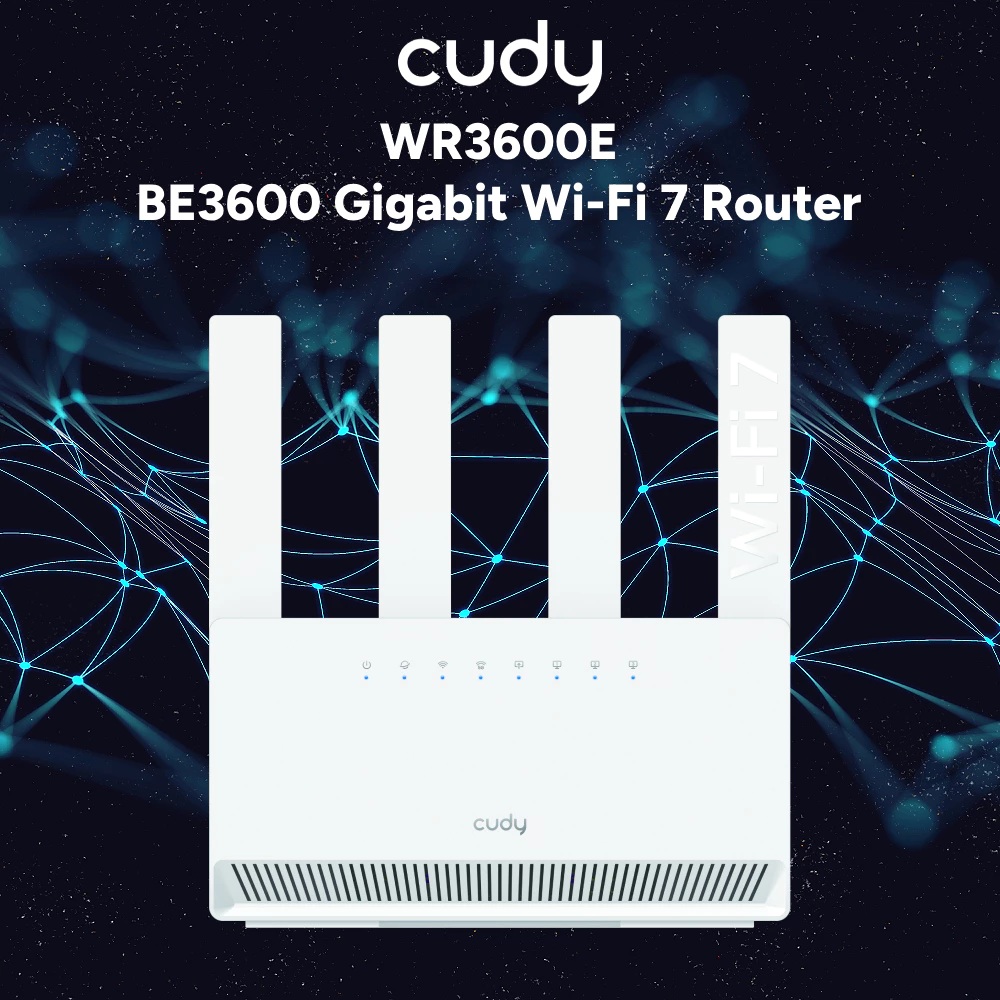

Cudy WR3600E - BE3600 Gigabit Wi-Fi 7 Router (WR3600E 1.0)
A dual-band WiFi 7 router providing the MLO speed aggregation feature, ideal for latency-sensitive, speed-demanding scenarios.
Key Features:
● Broadcom 2 GHz Quad-Core CPU
● 4-Stream Dual-Band Wi-Fi 7
● 2882 Mbps + 688 Mbps Wi-Fi 1

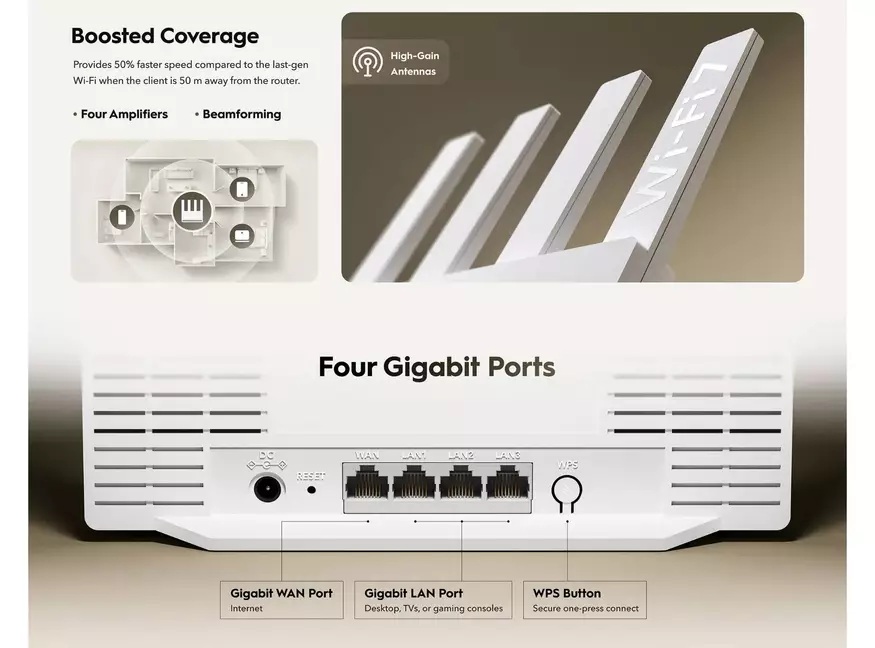

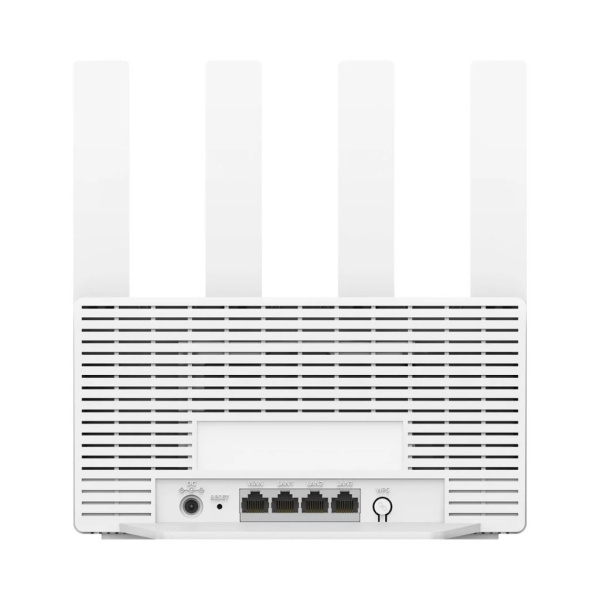

● 4× Gigabit Ethernet Ports
● 200 Connected Devices 2
● Covers 130 m² (1,400 ft²) 3
● VPN Server and Client
● Cudy App, Cloud Control

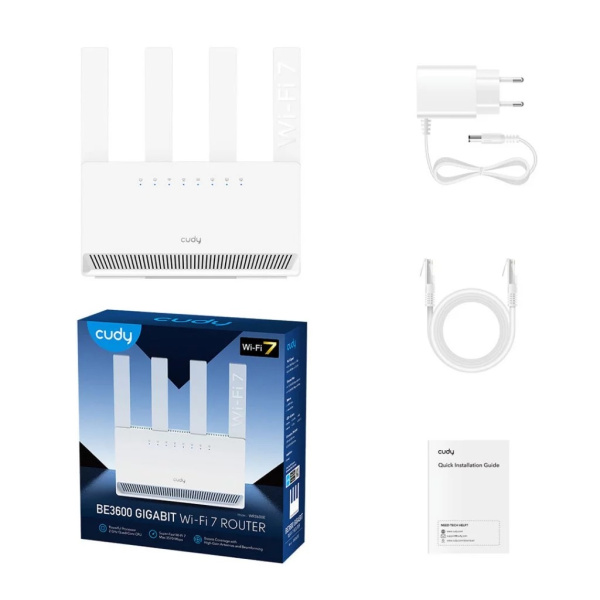

What's in box:
- 1x WR3600E
- 1x Power Adapter
- 1x Ethernet Cable
- 1x Installation Guide
|
Specifications:
-Flash/ROM: 128 MB (1 Gbit) NAN -DDDR/RAM: 512 MB (4 Gbit) DDR3L
Wireless: -5 GHz Wi-Fi Speed: 2882 Mbps -2.4 GHz Wi-Fi Speed688 Mbps -5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) -2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) -Wi-Fi Antennas: 4× Fixed -FEM or PA/LNA: 5 GH(2× External) & 2.4 GH(2× Internal) -Beamforming: True -Wall Performance: ● Two wooden walls with thickness 10 cm (4'') ● One concrete wall with thickness 20 cm (7'') or two concrete walls wth thickness 10 cm (4'') -Range Performance: ● Max: 220 m (722 ft) ● Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. Interfaces: -Gigabit RJ45 Ports: 4 -Ethernet Notes: 1× WAN port, the rest are LAN ports -LED: System, Internet, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, WAN, LAN, -Physical Buttons: WPS Button & Reset Button -Power Input: DC Jack Power: -Power Methods: DC -DC Input: 12V 1A -Power Adapter ● Input: 100 ~ 240 V, 50/60 Hz AC ● Output: 12V 1A DC -Max Power Consumption (W): 8.5W Reliability: Environment -Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) -Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) -Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5% ~ 95% non-condensing Certifications: FCC, CE Mechanical: -Installation: Desktop -Dimension: 209×48×220.4 mm/ 8.23×1.89×8.68 inches -Product Weight: 339.8 g (11.99 oz.) Wireless:
General:
WAN Mode: DHCP, Static IP, PPPOE, PPTP, L2TP Notes: The Range Extender/WISP/Client modes will be available with later firmware upgrade. |
