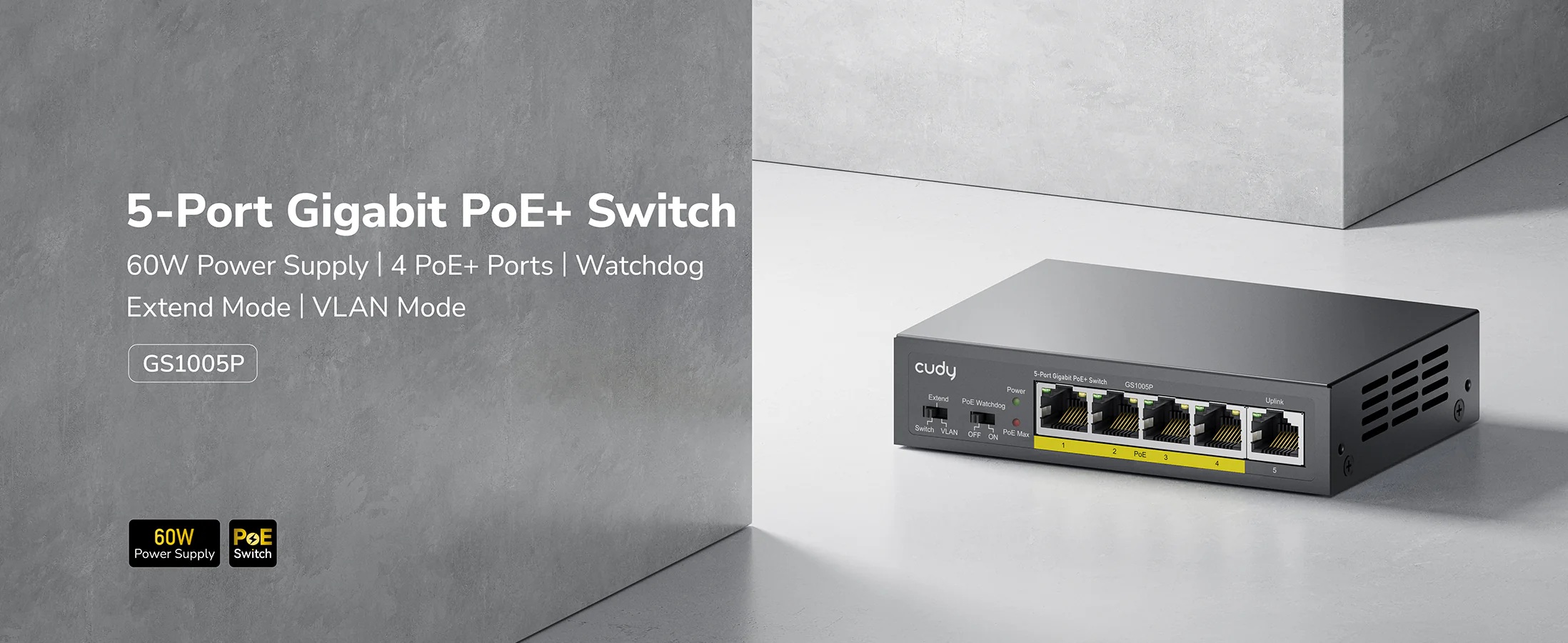

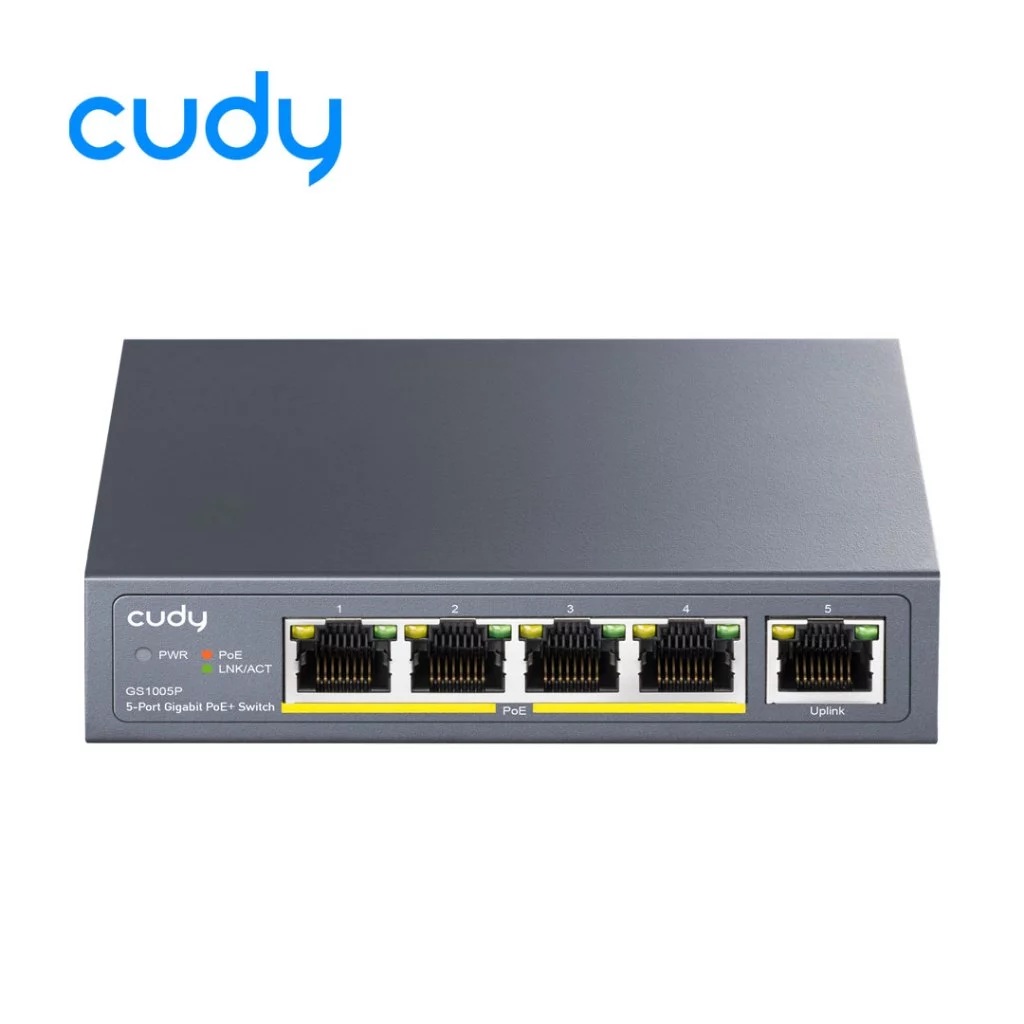

Cudy GS1005P - 5-Port Gigabit PoE+ Switch （GS1005P 2.0）
A wall-mounted PoE switch with a 60W power supply and a silent cooling system, featuring Default/Extend/VLAN mode switch and Watchdog on/off switch.

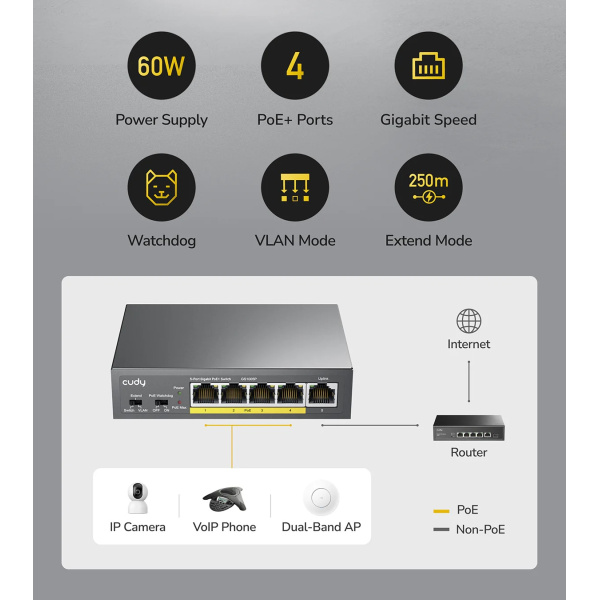

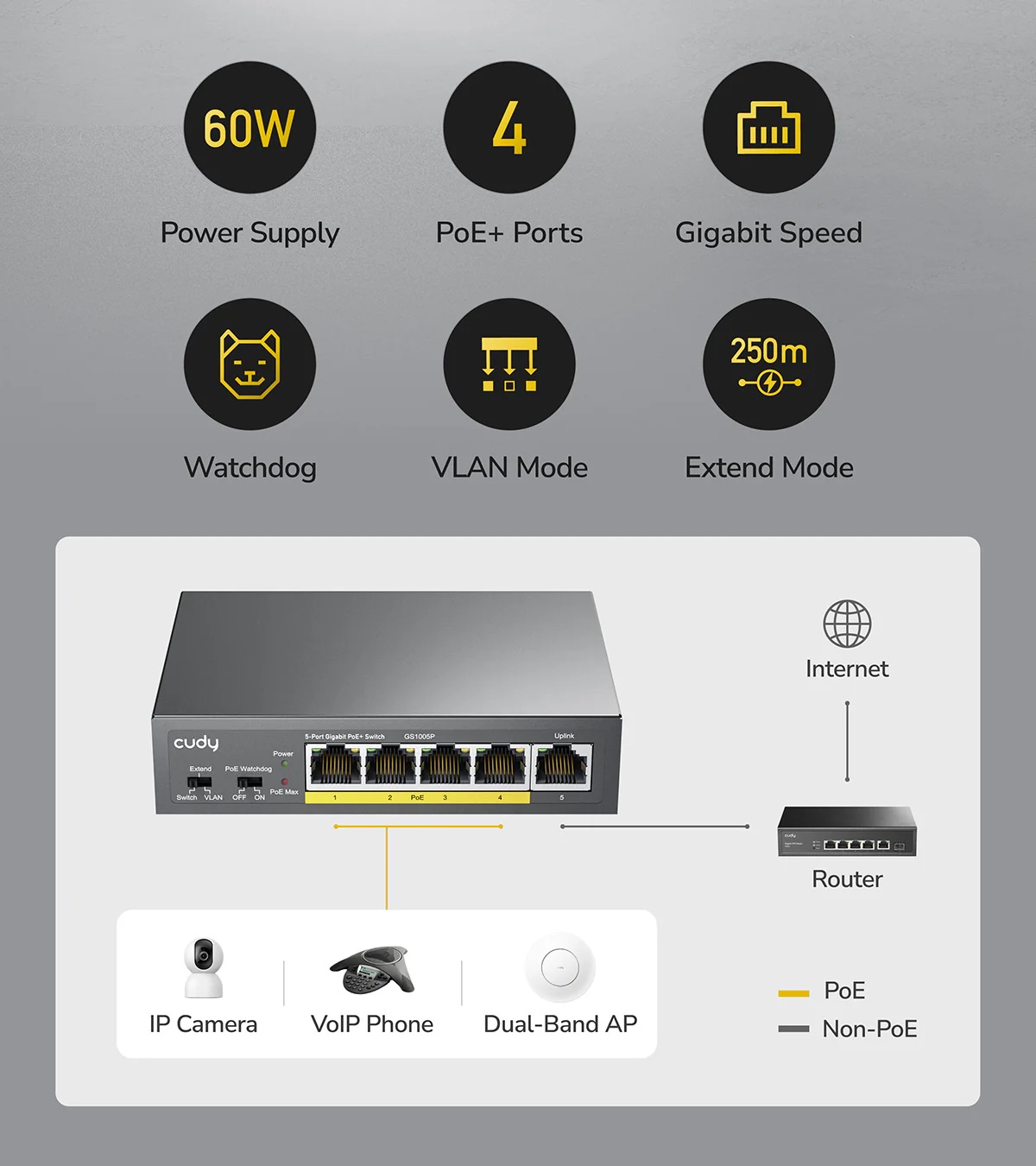

Key Features:
● 4× GbE with 802.3at/af Mode A PoE
● 1× Uplink GbE
● 60W Power Supply
● Default/VLAN/Extend Modes
● Watchdog On/Off
● PoE Max Status LED
● Desktop, Wall-Mount
● 119×85×28 mm (4.69×3.35×1.1″)

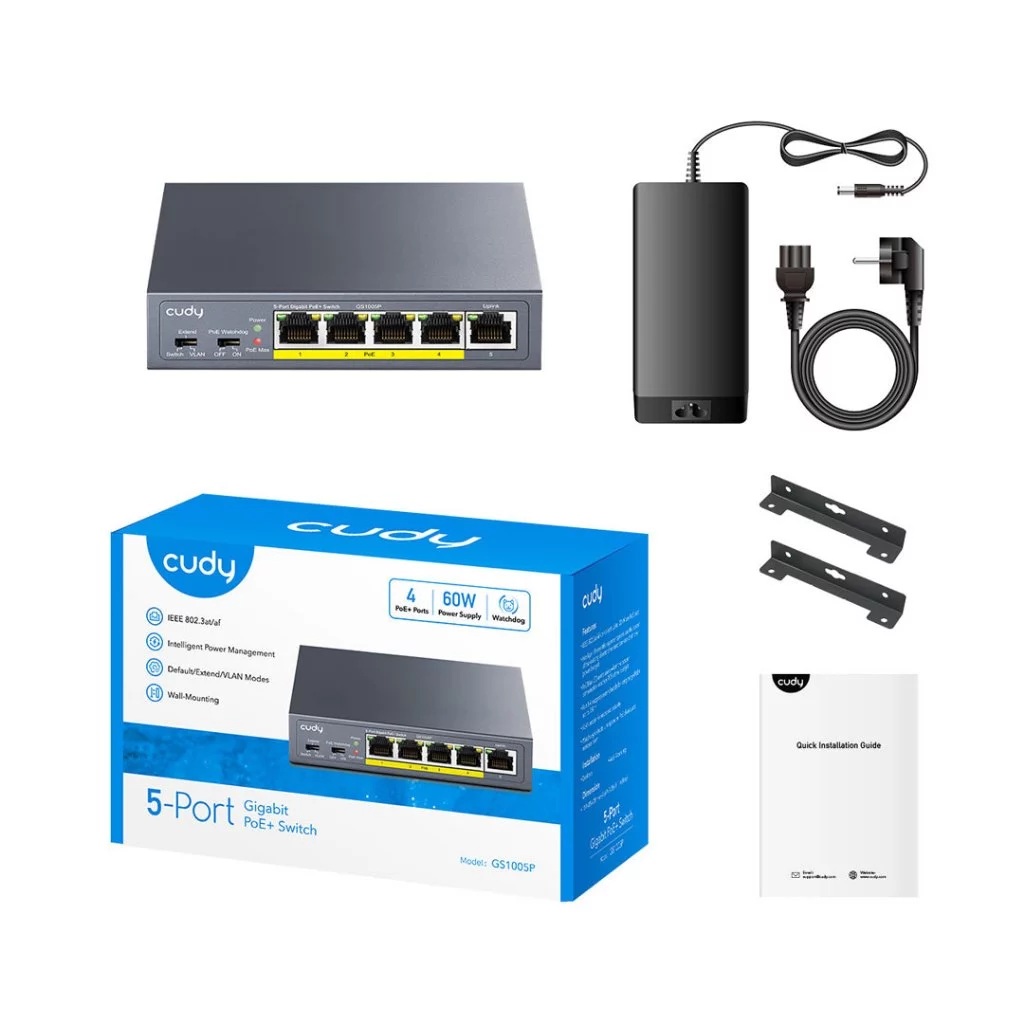

What's in box:
- GS1005P x1
- Power Adapter x1
- Power Cord x1
- Installation Guide x1
|

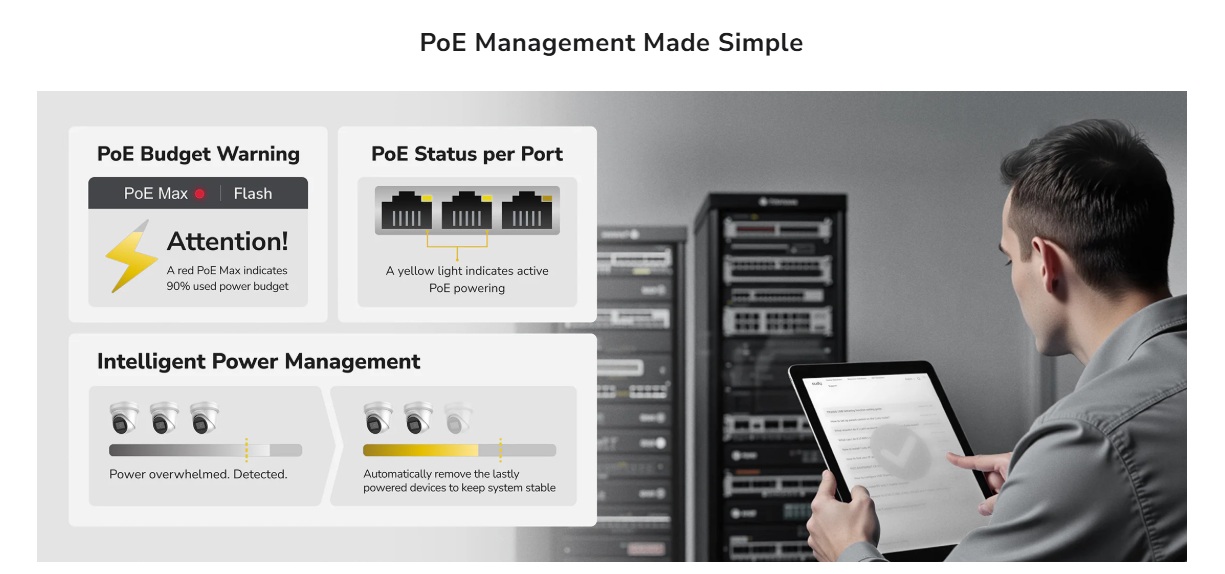

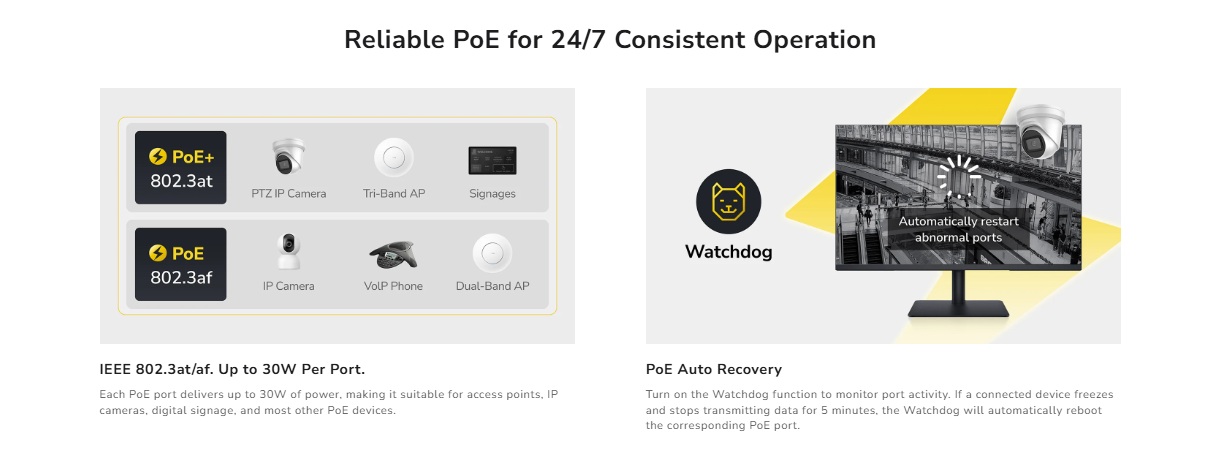

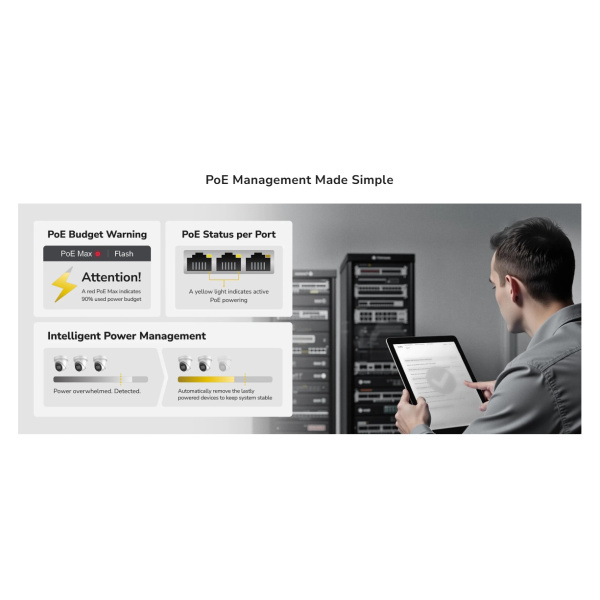

Specifications: ● Model Version: GS1005P 2.0 ● Interfaces - Gigabit RJ45 Ports: 5 - Gigabit RJ45 PoE Ports: #1~#4 - Max Power on a Single PoE Port: 30W - Power Input: DC Jack - Shielded RJ45 Port: True - Extend Mode Ports: #1~#4 - VLAN Mode Ports: #1~#4 - PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards. - PoE Priority: Intelligent Power Management: (Automatically disconnect the lastly powered device when power exceeds budget.) - LED: (Power) (PoE Status of Each PoE Port) (Link/ACT of Each Ethernet Port) (PoE Max Status) - Physical Buttons: (VLAN/Default/Extend DIP Switch) (PoE Watchdog On/Off) - Watchdog Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. ● Performance - Copper Speed and Distance: (Cat. 3 or higher cable: 100 meters at 10 Mbps) (Cat. 5 or higher cable: 100 meters at 100 Mbps) (Cat. 5e or higher cable: 100 meters at Gigabit) (Cat. 5e or higher cable: 250 meters at 10 Mbps) - MAC Address Table: 2048 - Max Switching Capacity: 10 Gbps - Max Forwarding Rate: 7.44 Mpps - Jumbo Frame: 15 KB - Packet Buffer: 3 Mbit - Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. ● Power - Power Methods: DC - DC54V⎓1.11A - Power Supply： 60W - Max Power Excluding PoE: 5W - Power Adapter: （Input: 100-240V~, 50/60Hz） （Output: 52V⎓1.11A） ● Switching - PoE Management: Intelligent Power Management - 802.3 Protocols: (802.3i 10BASE-T) (802.3u 100BASE-TX) (802.3ab 1000BASE-T) (802.3x Flow Control) (802.3af PoE) (802.3at PoE) ● Reliability - Grounding Methods: Three-Prong Plug - EMS: (IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV) (IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV) ● Mechanical - Product Weight: 253.0 g (8.92 oz.) - Casing Material: Metal - Installation: Desktop / Wall-mount - Dimension: 119×85×28 mm (4.69×3.35×1.1 inches) |
