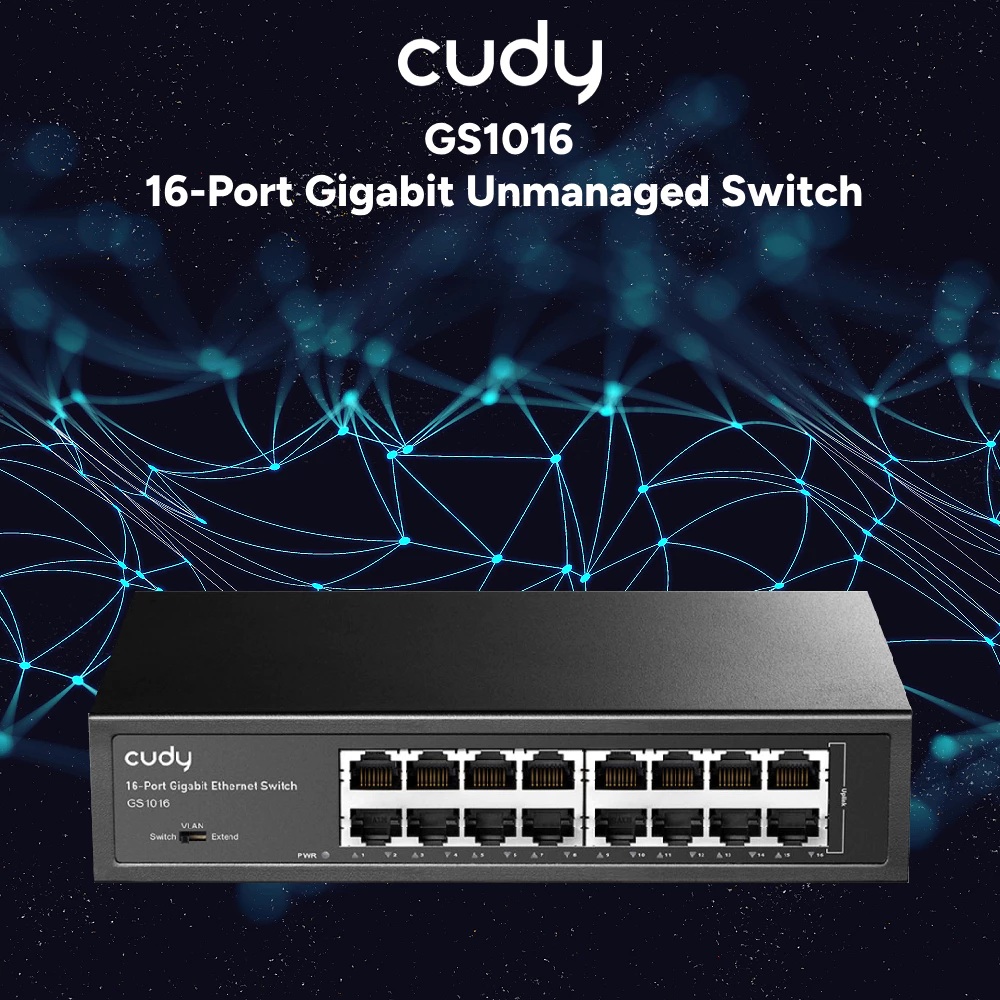

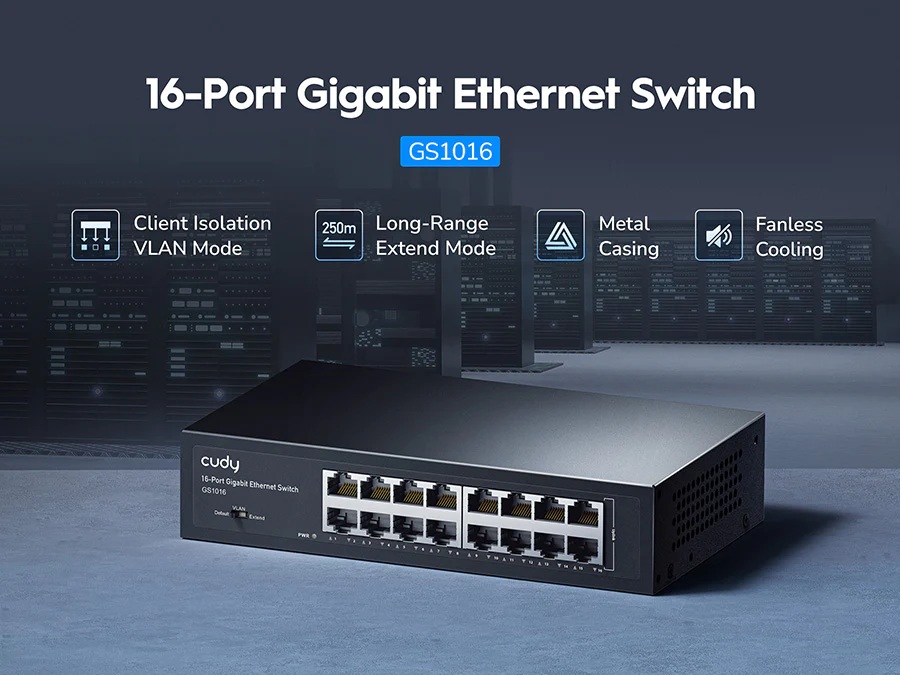

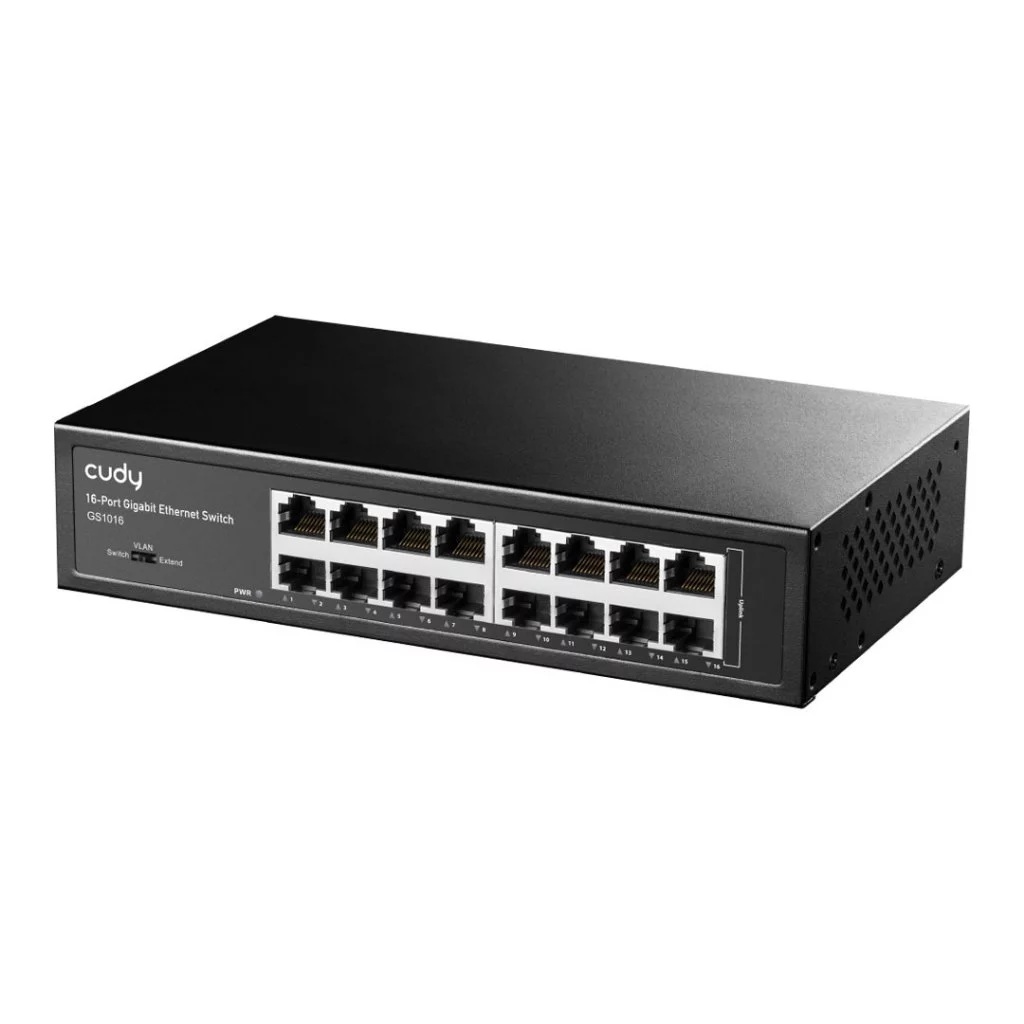

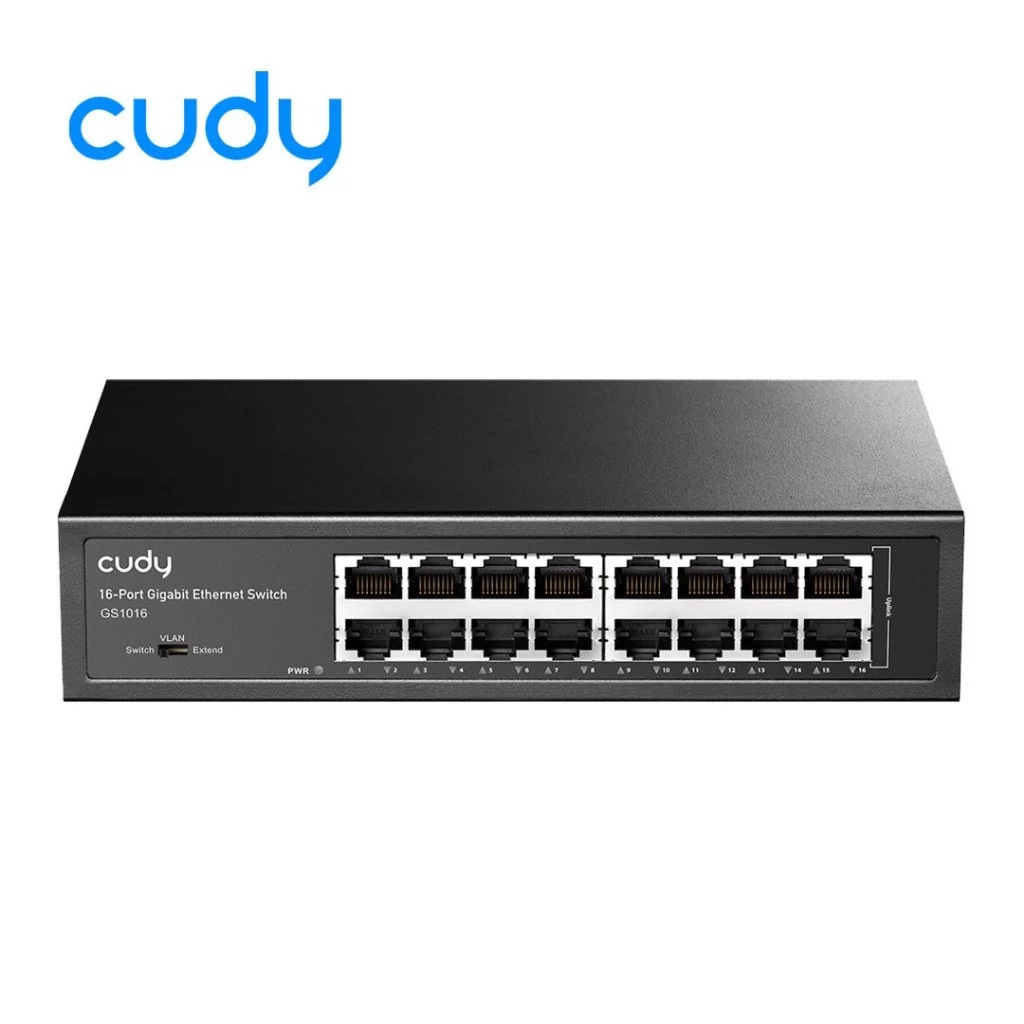

Cudy GS1016 - 16-Port Gigabit Unmanaged Switch (GS1016 3.0)
A 16-GbE switch with VLAN/Extend functions and a fanless cooling system.
Key Features:
● 16× GbE

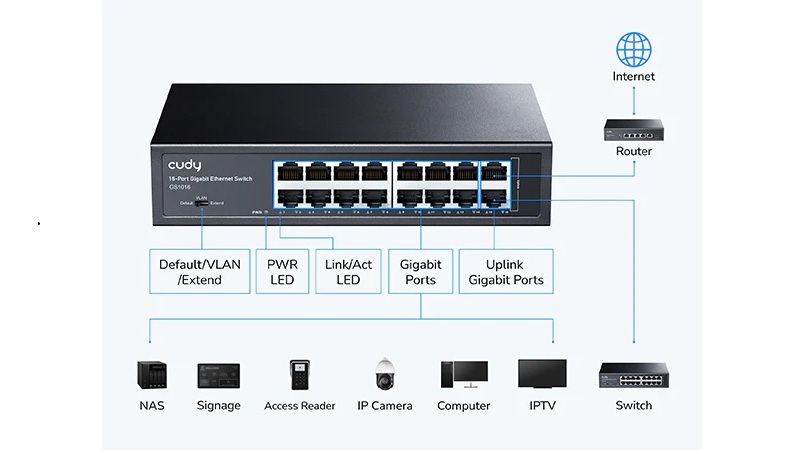

● Default/VLAN/Extend Modes
● Extend for 250 Meters Transmission
● VLAN for Clients Isolation

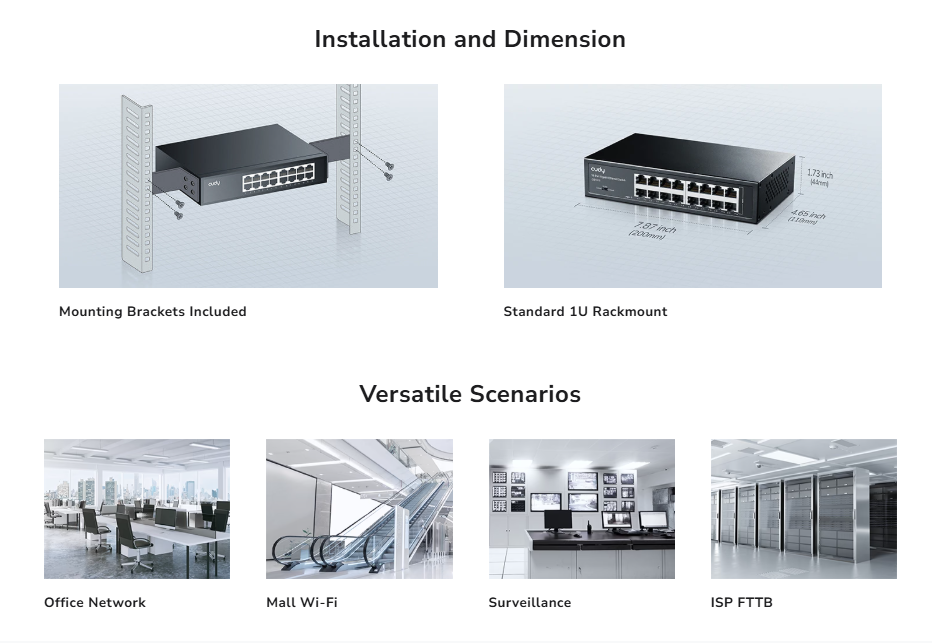

● Desktop, Rack-Mount
● 200×118×44 mm (7.87×4.65×1.73'')
● 617 g (21.76 oz.)

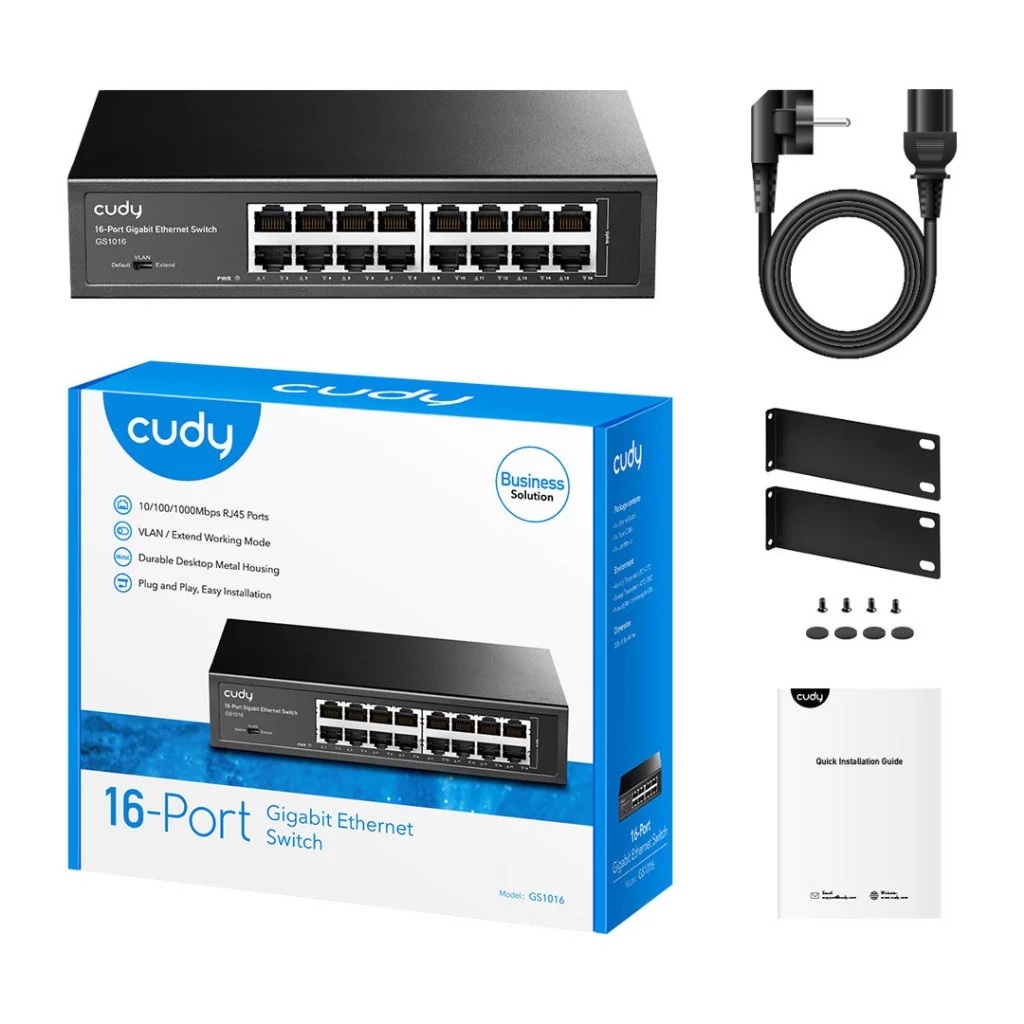

What's in box:
- GS1016 x1
- Power Cord x1
- Installation Guide x1
- Mounting Kit x1
|
Specifications: ● Model Version: GS1016 3.0 ● Interfaces - Gigabit RJ45 Ports: 16 - Shielded RJ45 Port: True - Power Input: AC Inlet - Extend Mode Ports: #1~#14 - VLAN Mode Ports: #1~#14 - LED: Power + Speed/Link/ACT of Each Ethernet Port - Physical Buttons: VLAN/Default/Extend DIP Switch ● Performance - MAC Address Table: 8192 - Max Switching Capacity: 32 Gbps - Max Forwarding Rate: 23.808 Mpps - Jumbo Frame: 15 KB - Packet Buffer:4 Mbit - Copper Speed and Distance (Cat. 3 or higher cable: 100 meters at 10 Mbps) (Cat. 5 or higher cable: 100 meters at 100 Mbps) (Cat. 5e or higher cable: 100 meters at Gigabit) (Cat. 5e or higher cable: 250 meters at 10 Mbps) -Copper Speed and Distance Note: (250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.) ● Power - Basic Power Saving: True - Power Methods: AC - AC: 90-260V~, 50/60Hz - Max Power Consumption: 7.8W - Idle Power Consumption: 4.5W ● Switching: - 802.3 Protocols : (802.3x Flow Control) (802.3i 10BASE-T) (802.3u 100BASE-TX) (802.3ab 1000BASE-T) - 802.1 Protocols: 802.1p: LAN Layer 2 QoS/CoS - L2 Features: (IGMP Snooping) (Loop Prevention) (Loop Detection) (DSCP QoS) (802.1p QoS) ● Reliability - Grounding Methods: Three-Prong Plug + Grounding Point - EMS: (IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV) (IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV) ● Mechanical - Dimension: 200×118×44 mm (7.87×4.65×1.73 inches) - Product Weight: 619 g (21.83 oz.) - Casing Material: Metal - Installation: Desktop + Rackmount via Brackets |
